Description
PRAG 2KVA – 24V Inverter H-Series (Pure Sine Wave) Inverter/Charger is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak conversion efficiency of 88%.
So, it is packed with unique features and it is one of the most advanced inverter/chargers in the market today.
Furthermore, the PRAG Inverter features power factor correction, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment.
Subsequently, PRAG H-Series 2KVA – 24V Inverter is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of the continuous output for up to 20 seconds to reliably support tools and equipment longer.
PRAG 2KVA – 24V Inverter Features
- The PRAG Inverter is Easy to Install and Easy to Operate. This inverter is also Easy to Solve
- It is also designed to Operate under Harsh Environment
- The Inverter comes with the ability to do a DC Start & Automatic Self-Diagnostic Function
- It is Compatible with Both Linear & Non-Linear Load
- Low DC Voltage Supports Home & Office Appliances on the inverter
- With this PRAG Inverter, you can enjoy Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
- High Efficiency Inverter Design & “Power Saving Mode” to Conserve Energy
- Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
- 13 Vdc Inverter Battery Recover Point, Dedicated for Renewable Energy Systems
- 8 pre Set Battery Type Selector plus De-sulphation for Totally Flat Inverter Batteries
- 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
- 8 ms Typical Transfer Time Between Utility & Inverter Battery, Guarantees Power Continuity
- 15s Delay Before Transfer when AC Resumes, Protection for Load when Used with Generator
- Battery DOD(Depth of Discharge)setting from 50% to 100%

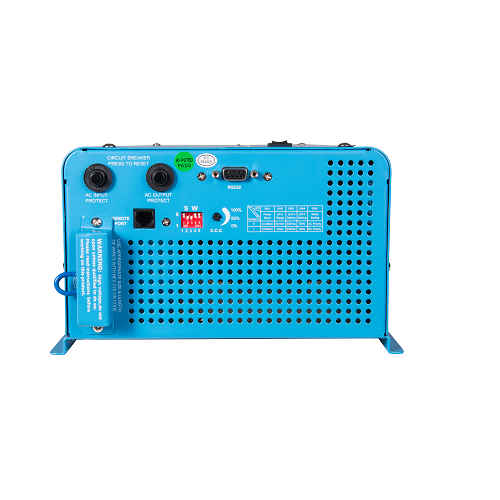

Prag 2KVA – 24V Inverter – H
SKU: PRG19-0224
₦283,200.00Price
Specifications
Inverter Output Model PT-INV-4KVA 24V-Color LED, Wall-H Continuous Output Power 1500W Surge Rating(20s) 4000W Capable of Starting Electric Motor 1.5HP Output Waveform Pure Sine wave/Same as input(Bypass mode) Nominal Efficiency >88%(Peak) Line Mode Efficiency >95% Power Factor 0.9-1.0 Nominal Output Voltage rms 100-110-120Vac / 220-230-240Vac Output Voltage Regulation ±10% RMS Output Frequency 50/60Hz ± 0.3Hz Short Circuit Protection Yes, Current Limit Function (Fault after 1sec) Typical transfer Time 10ms(Max) THD < 10% DC Input Nominal Input Voltage 12.0Vdc ( *2 for 24Vdc, *4 for 48Vdc) Minimum Start Voltage 10.0Vdc Low Battery Alarm 10.5Vdc / 11.0Vdc Low Battery Trip 10.0Vdc / 10.5Vdc High Voltage Alarm & Fault 16.0Vdc High DC Input Recovery 15.5Vdc Low Battery voltage recover 13.0Vdc Idle Consumption-Search Mode < 25 W when Power Saver On Charge Input Voltage Range Wide: 90~135VAC / 164~243VAC
Narraw: 100~135VAC / 194~243VACInput Frequency Range Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz
Wide:43±0.3Hz plus for 50Hz/60HzOutput Voltage Depends on battery type Charger Breaker Rating 30A Max Charge Rate 30 ± 5A Over Charge Protection Shutdown 15.7V for 12Vdc ( *2 for 24Vdc, *4 for 48Vdc) Charger curve(4 stage constant current)
4 step digital controlled progressive chargeBattery types ( *2 for 24Vdc, *4 for 48Vdc) Battery type Fast Vdc Gel U.S.A 14.0 A.G.M 1 14.1 A.G.M 2 14.6 Sealed Lead Acid 14.4 Gel Euro 14.4 Open Lead Acid 14.8 Calcium 15.1 De-sulphation 15.5 for 4hrs Remote Control Yes. Optional Bypass & Protection Input Voltage Waveform Sine wave (Grid or Generator) Nominal Voltage 120Vac Low Voltage Trip 80V/90V±4% Low Voltage re engage 90V/100V±4% High Voltage Trip 140V±4% High Voltage re engage 135V±4% Max Input AC Voltage 150VAC Nominal Input Frequency 50Hz or 60Hz (Auto detect) Low Freq Trip Narrow: 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
Wide:40±0.3Hz for 50Hz/60HzLow Freq re engage Narrow: 48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz
Wide:42±0.3Hz for 50Hz/60HzHigh Freq Trip Narrow: 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
Wide: 70±0.3Hz for 50Hz/60HzHigh Freq re engage Narrow: 54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz
Wide: 68±0.3Hz for 50Hz/60HzOutput Short circuit protection Circuit breaker Bypass breaker rating 30A Transfer switch rating 40amp for UL Max bypass current 40amp Mechanical Specification Mounting Wall mount Inverter Dimensions(L*W*H) 670*350*300mm Inverter Weight 17KG Shipping Dimensions(L*W*H) 585x320x310mm Shipping Weight 11KG Display Status LEDs / Status LEDs+LCD Standard Warranty 1 Year
